Meike Mini Prime Cine lens for Fujifilm X Mount Cameras (Single Lens)

Cine Lens Option:

MK-10mm T2.2,

MK-25mm T2.2,

MK-35mm T2.2,

MK-50mm T2.2,

MK-65mm T2.2,

MK-85mm T2.2

Compatibility(X Mount):

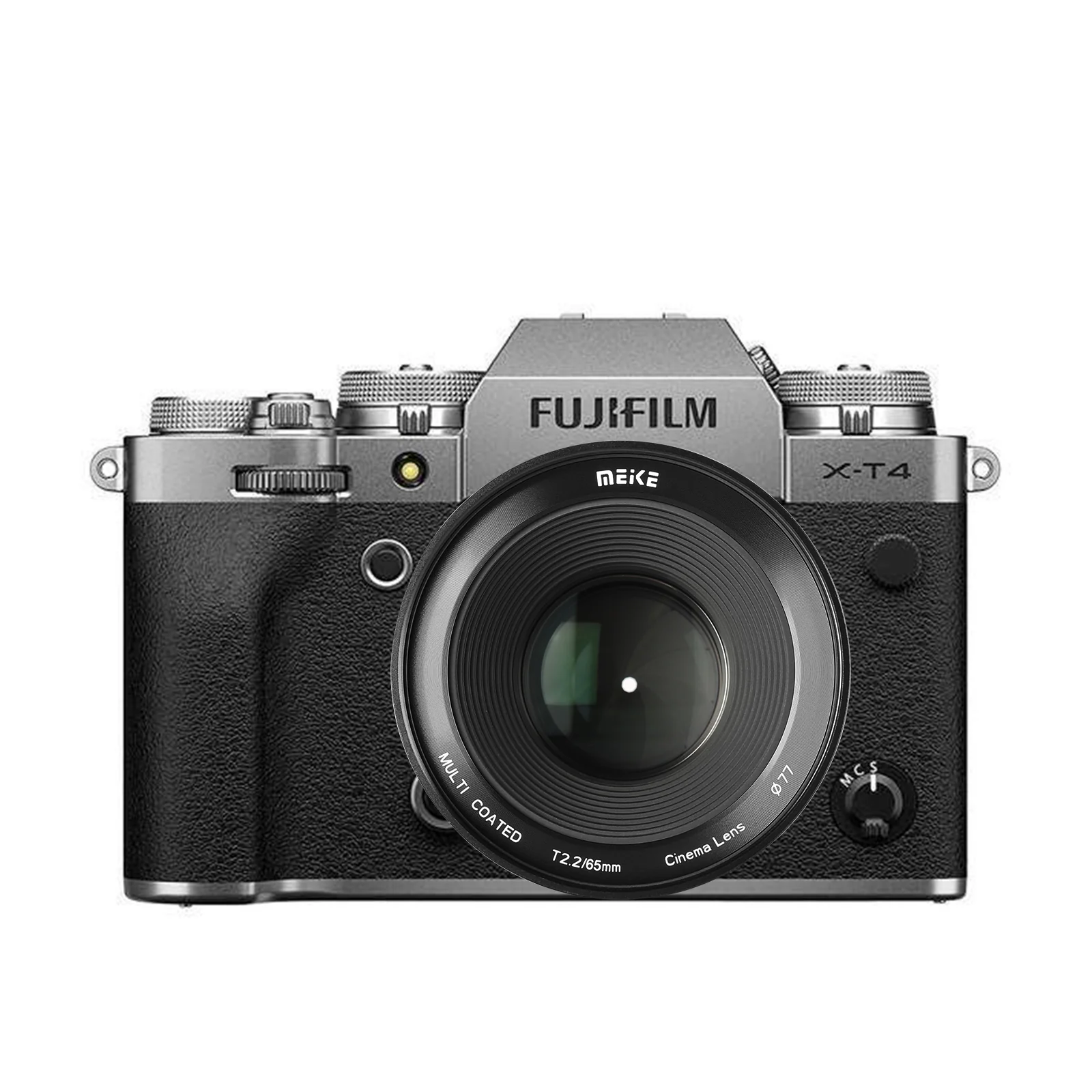

• Compatible with Fujifilm X Mount Cameras X-H1 ,X-Pro2 ,X-E3 ,X-T1 ,X-T2 ,X-T3 X-T10 ,X-T20 ,X-A2 ,X-E2 ,X-T100 ,X-E1 ,X30 X70 X-M1 X-A1 XPro1, X-T4, X-T5，X-H2s,etc


IMAGE:

• - Very, very sharp
• - Little to no color cast, great contrast
• - Smooth, circular bokeh
• - Little to no focus breathing
• - Focus marks accurate, as close as 10”
• - Very little flaring or blooming

MK-10mm T2.2   Specifications:

Lens Mount:	M43/E/X/RF
Min Focal Dist:	30cm
Filter Thread:	ø77
Image Circle:	30.5mm
Focal Length:	10mm
Aperture Range:	T2.2-T22
Structure:	15 Elements in 12 Groups
Iris Blades:	10
Focus Rotation:	260 Degree
Dimensions (Ø x L):	ø80 × 88mm
Weight:	575g

FOV: on M43  camera	on APS-C camera
diagonal 90.4° horizontal 77.6° vertical 62.4°	diagonal 106.4° horizontal 95.6° vertical 71.4°



Multi-layered

• Delivery image with smooth, circular bokeh
• Designed for video making

Metal bayonet

• Metal bayonet made of lithium alloy
• Stable and reliable

MK-10mm T2.2  Sample pictures:

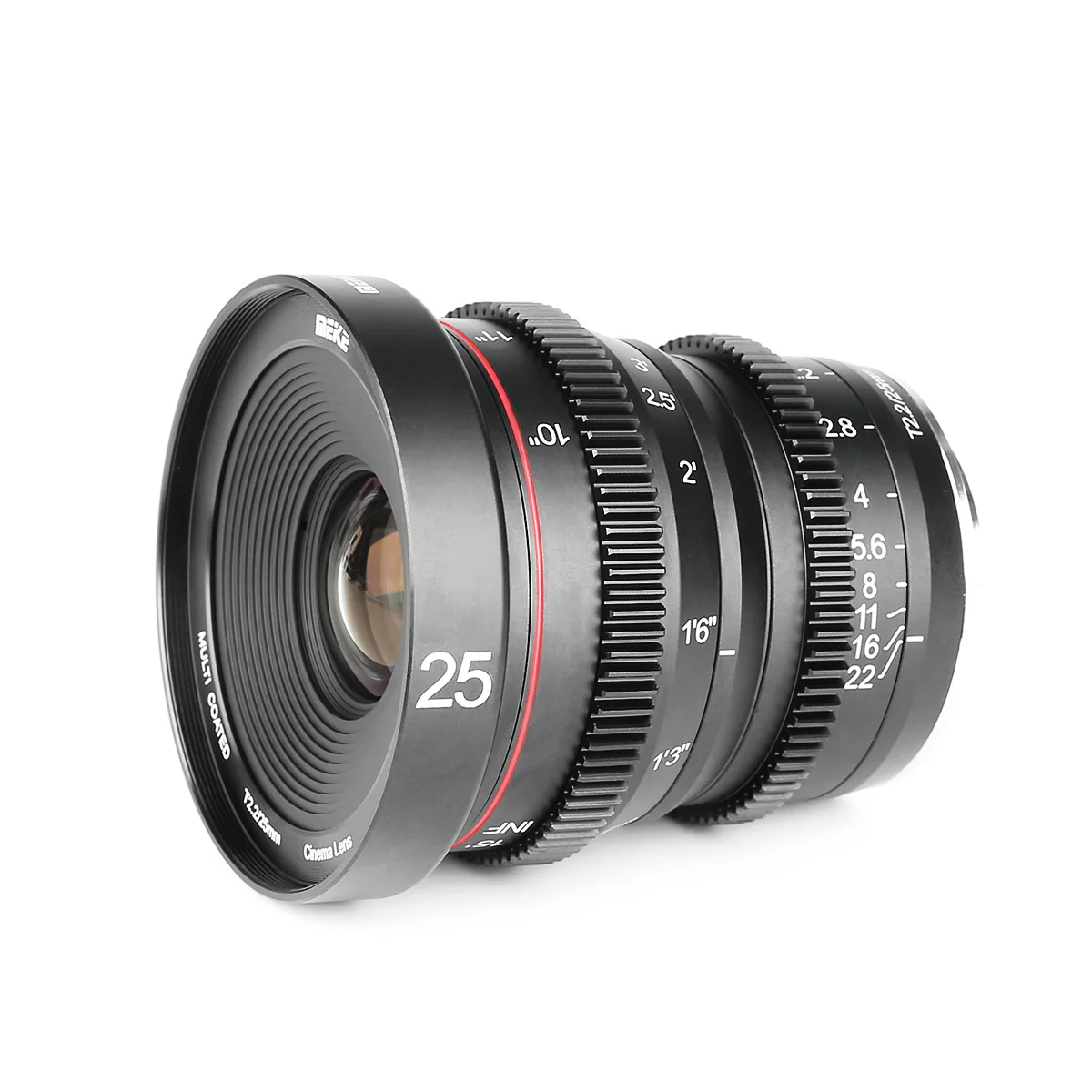

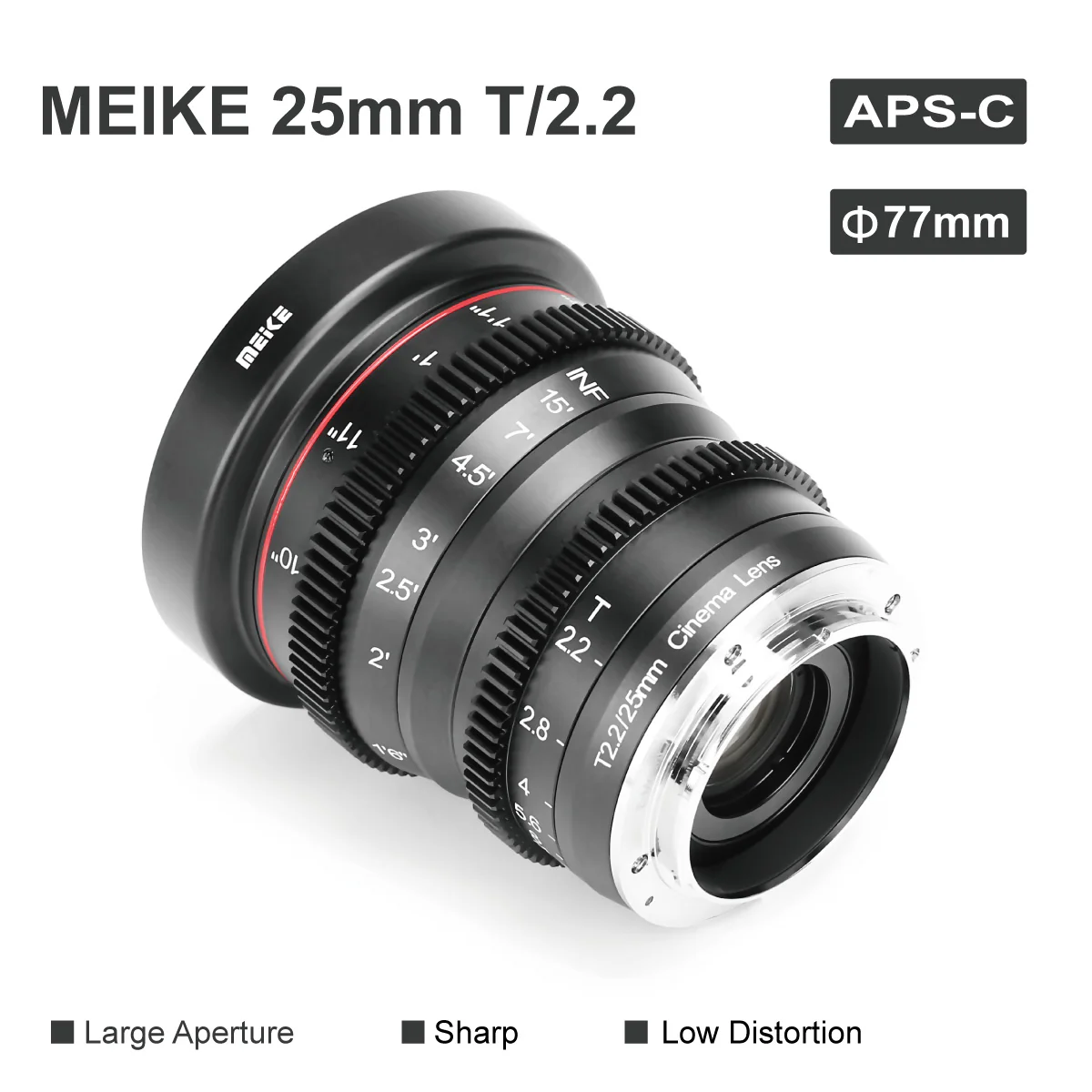

MK-25mm T2.2   Specifications:

Lens Mount:	M43/E/X/RF
Min Focal Dist:	25cm
Filter Thread:	ø77
Image Circle:	28.4mm
Focal Length:	25mm
Aperture Range:	T2.2-T22
Structure:	10 Elements in 8 Groups
Iris Blades:	10
Focus Rotation:	260 Degree
Dimensions (Ø x L): M43:	ø80 × 86.0mm
Weight:	515g

FOV: on M43 camera	on APS-C camera
diagonal 49.7° horizontal 40.6° vertical 31°	diagonal  / horizontal  / vertical  /





MK-25mm T2.2  Sample pictures:

The images they produce are very sharp and pleasing while skin tones are very smooth.

The long throw focus makes it a pleasure to use.

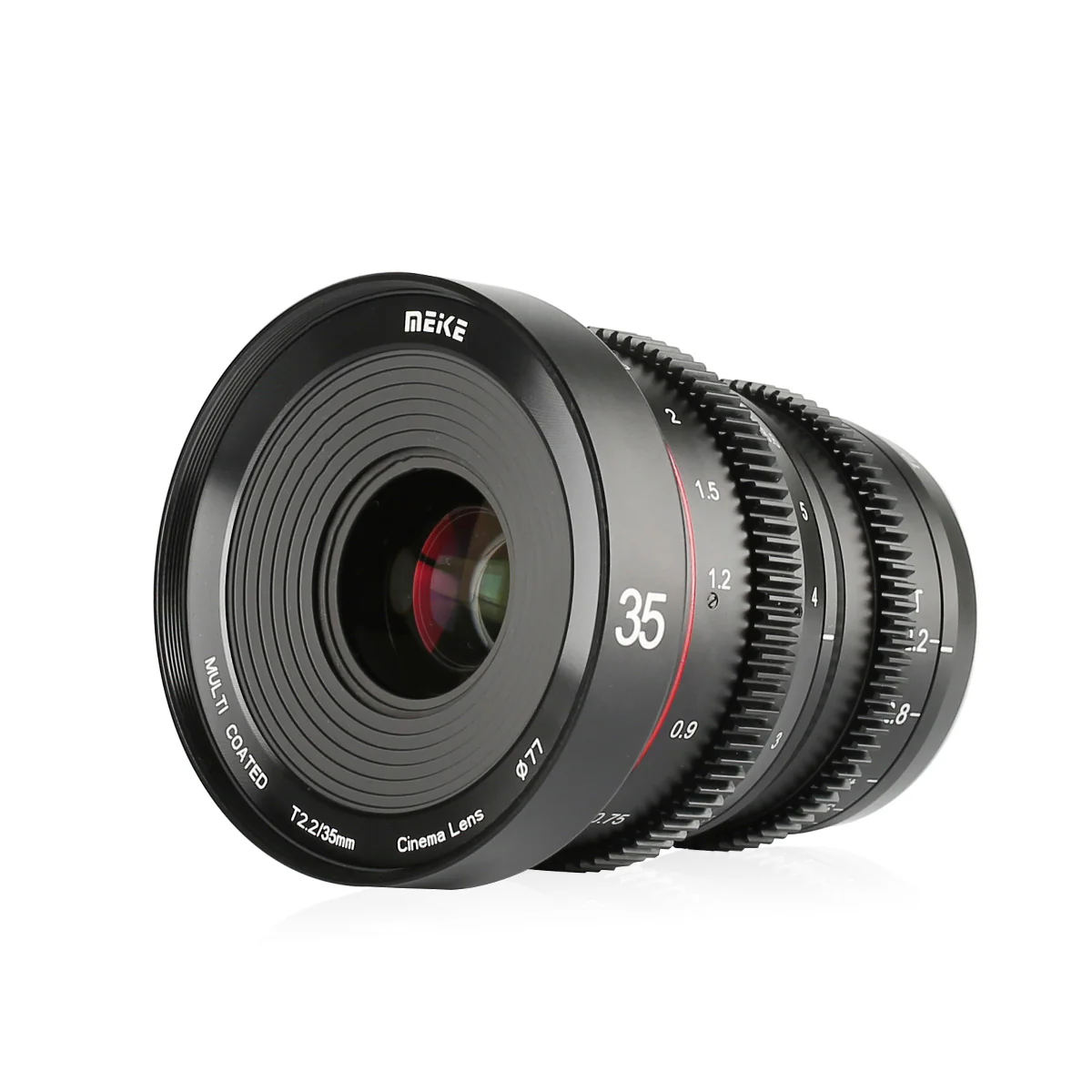

MK-35mm T2.2    Specifications:

Lens Mount:	M43/E/X/RF
Min Focal Dist:	51cm
Filter Thread:	ø77
Image Circle:	28.4mm
Focal Length:	35mm
Aperture Range:	T2.2-T22
Structure:	10 Elements in 8 Groups
Iris Blades:	10
Focus Rotation:	260 Degree
Dimensions (Ø x L): M43:	ø80 × 93.8mm
Weight:	638g

FOV: on M43 camera	on APS-C camera
diagonal 37° horizontal 29.7° vertical 22.4°	diagonal 44.4° horizontal 36° vertical 27.2°

MK-35mm T2.2  Sample pictures:

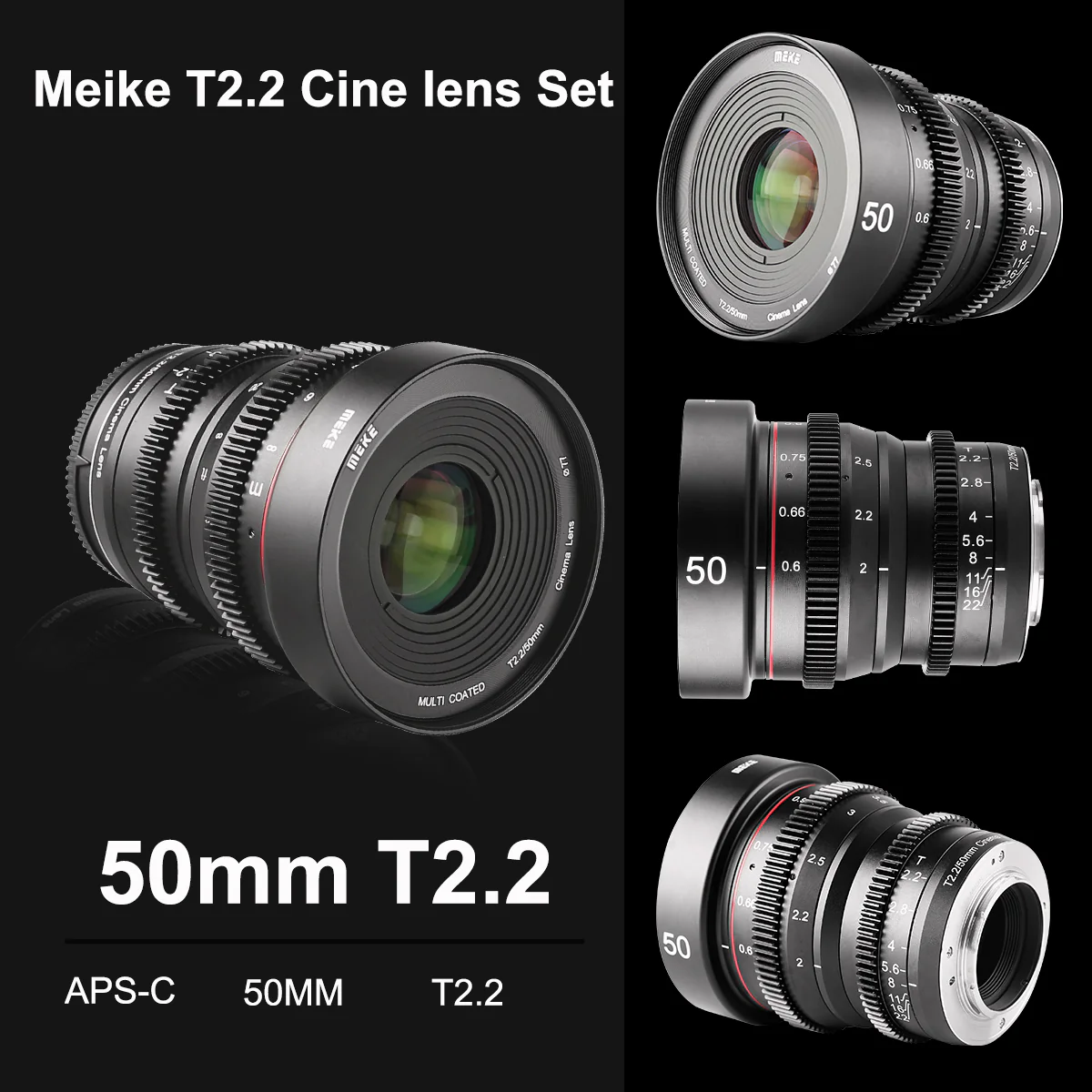

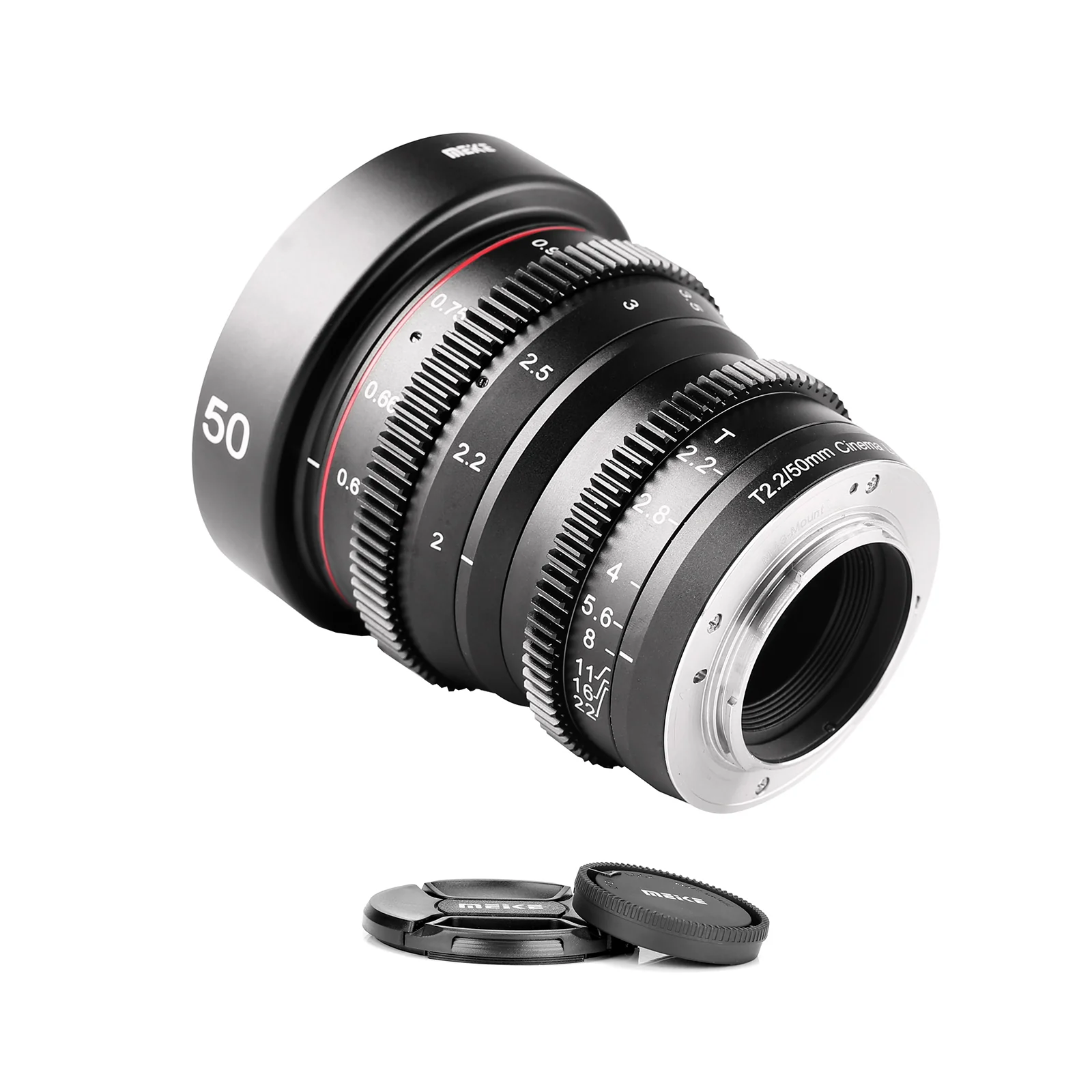

MK-50mm T2.2   Specifications:

Lens Mount:	M43/E/X/RF
Min Focal Dist:	60cm
Filter Thread:	ø77
Image Circle:	30.5mm
Focal Length:	50mm
Aperture Range:	T2.2-T22
Structure:	9 Elements in 7 Groups
Iris Blades:	10
Focus Rotation:	260 Degree
Dimensions (Ø x L): M43:	ø80 × 91.4mm
Weight:	623g

FOV: on M43 camera	on APS-C camera
diagonal 24.8° horizontal 19.8° vertical 15°	diagonal 32° horizontal 26.8° vertical 17.9°





MK-50mm T2.2  Sample pictures:







MK-65mm T2.2  Specifications:

Lens Mount:	M43/E/X/RF
Min Focal Dist:	68cm
Filter Thread:	ø77
Image Circle	30.5mm
Focal Length:	65mm
Aperture Range:	T2.2-T22
Structure:	10 Elements in 7 Groups
Iris Blades:	10
Focus Rotation:	260 Degree
Dimensions (Ø x L): M43:	ø80 × 84.6mm
Weight:	545g

FOV: on M43 camera	on APS-C camera
diagonal 20° horizontal 16.1° vertical 21.1°	diagonal 24.4° horizontal 20.6° vertical 13.9°





Review from user

BUILD:

- All metal

- .8 pitch gears

- Nice smooth focus and aperture control

- Very long (270º) focus throw, perfect for accurately pulling focus

- Focus distance and aperture marks on both sides of lens

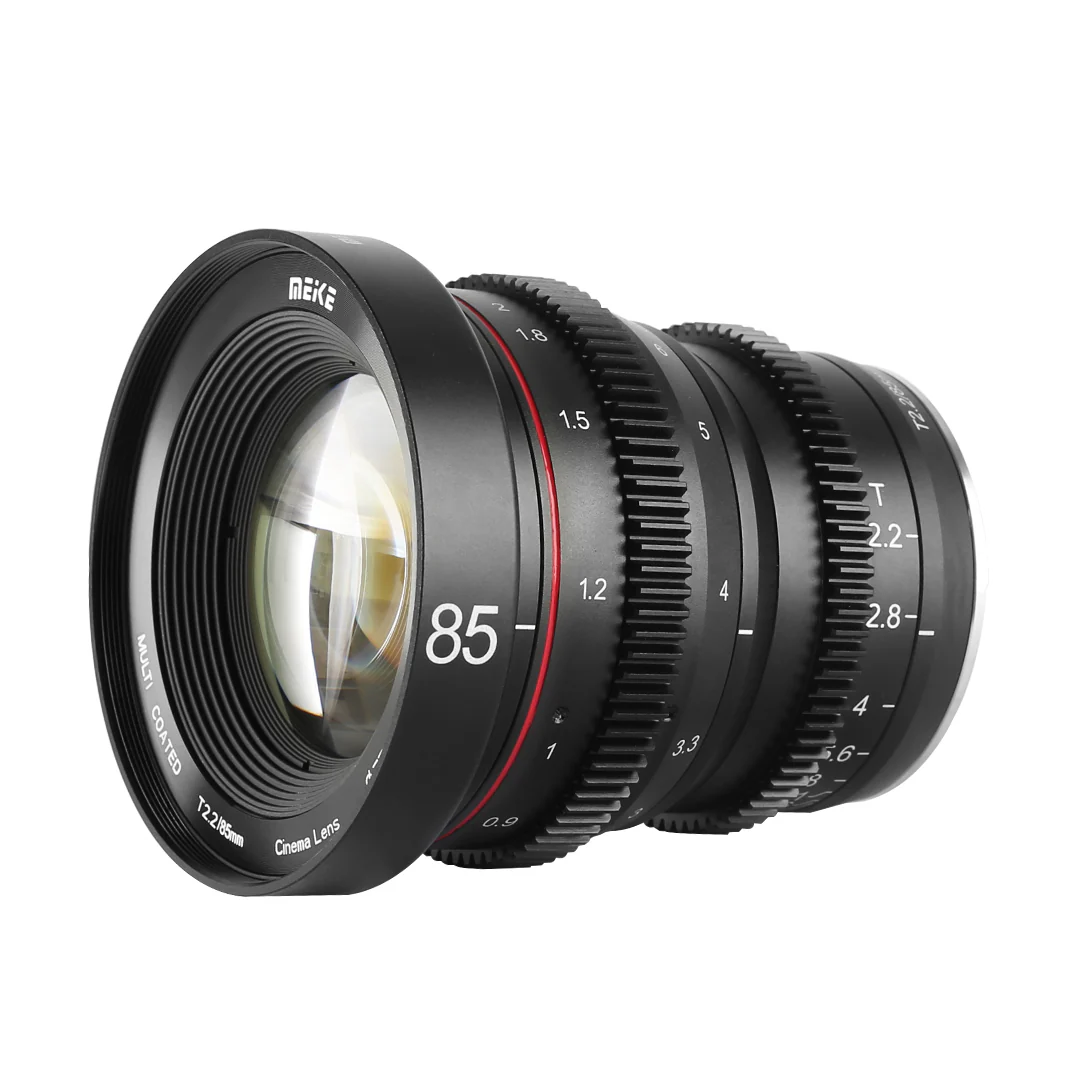

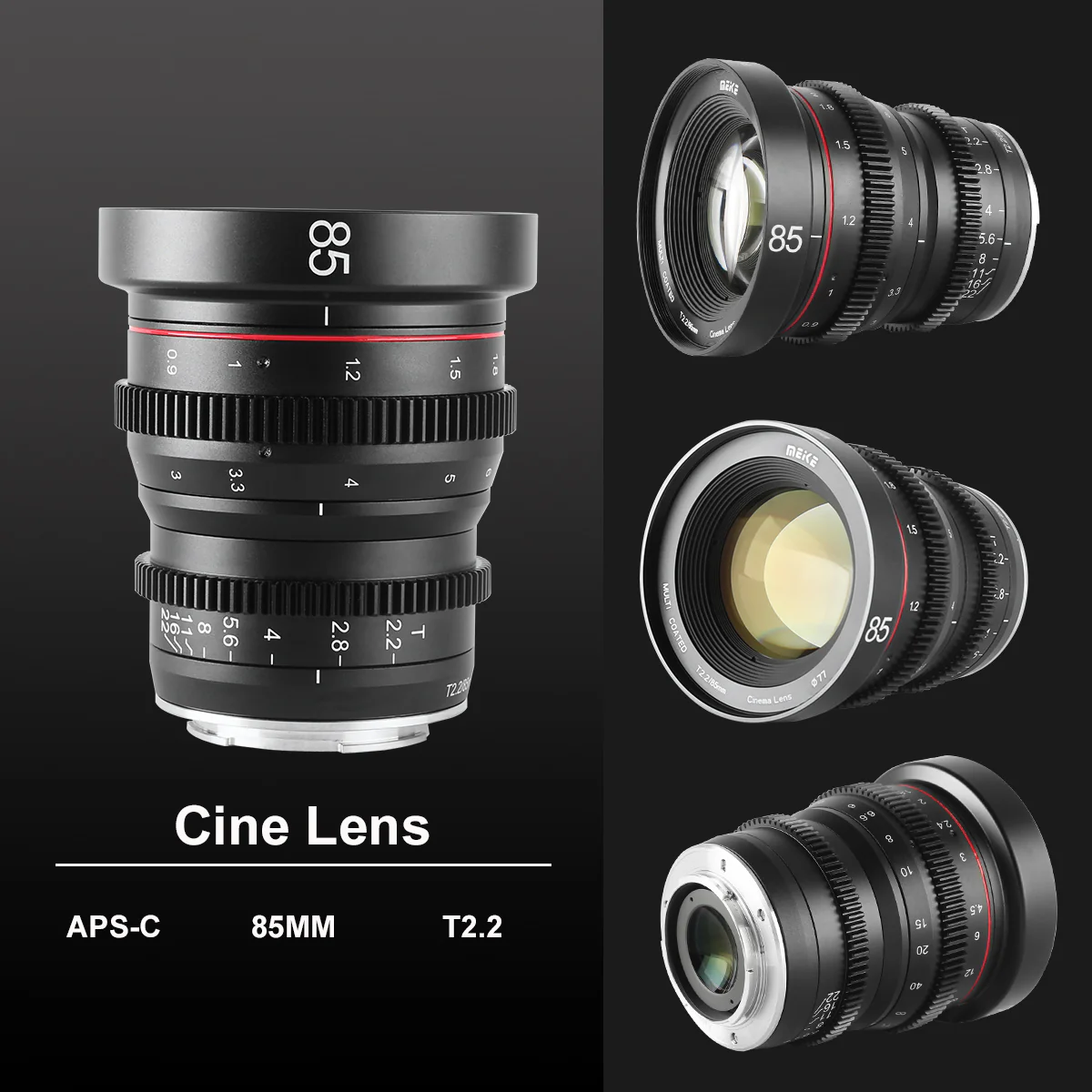

MK-85mm T2.2  Specifications:

Lens Mount:	M43/E/X/RF
Min Focal Dist:	90cm
Filter Thread:	ø77
Image Circle	30.5mm
Focal Length:	85mm
Aperture Range:	T2.2-T22
Structure:	9 Elements in 7 Groups
Iris Blades:	10
Focus Rotation:	260 Degree
Dimensions (Ø x L): M43:	ø80 × 89.7mm
Weight:	640g

FOV: on M43 camera	on APS-C camera
diagonal 15.4° horizontal 12.4° vertical 9.3°	diagonal 19° horizontal 15.8° vertical 10.6°

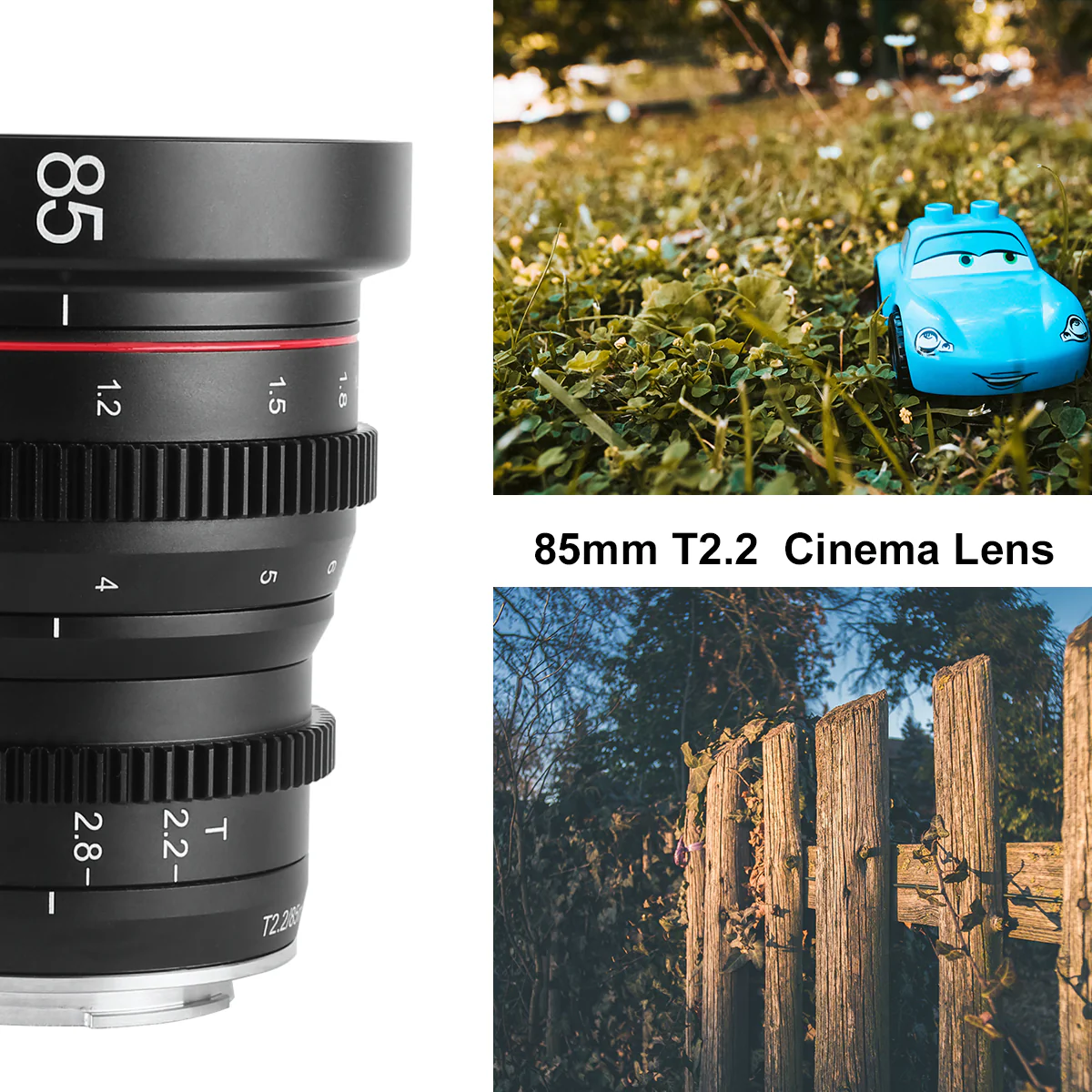

MK-85mm T2.2  Sample pictures:
